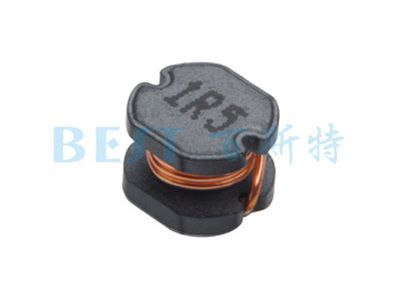

CD43貼片功率電感封裝尺寸圖
| TYPE(規格型號) | A | B | C | D | E | F | G |
| CD32 | 3.0±0.3 | 2.1±0.3 | 3.5±0.3 | 1.0 | 1.6 | 3.5 | 0.8 |
| CD43 | 4.0±0.3 | 3.2±0.3 | 4.5±0.3 | 1.4 | 1.75 | 4.5 | 1.2 |
| CD53 | 5.2±0.3 | 3.0±0.3 | 5.8±0.3 | 2.1 | 2.15 | 5.5 | 1.7 |
| CD54 | 5.2±0.3 | 4.5±0.3 | 5.8±0.3 | 2.1 | 2.15 | 5.5 | 1.7 |
| CD75 | 7.0±0.3 | 5.0±0.3 | 7.8±0.3 | 2.5 | 3.0 | 7.5 | 2.0 |
?
CD43貼片功率電感參數
| 型號 | ?電感值(μH) | DCR (Max)直流電阻(Ω) | IDC (Max)額定電流(A) | ? 測試頻率(kHz) |
| CD43-1.0uH/M | 1.0 | 0.025 | 3.00 | 100 |
| CD43-1.2uH/M | 1.2 | 0.025 | 2.90 | 100 |
| CD43-1.5uH/M | 1.5 | 0.038 | 2.85 | 100 |
| CD43-1.8uH/M | 1.8 | 0.030 | 2.80 | 100 |
| CD43-2.2uH/M | 2.2 | 0.045 | 2.50 | 100 |
| CD43-3.3uH/M | 3.3 | 0.055 | 2.10 | 100 |
| CD43-4.7uH/M | 4.7 | 0.075 | 1.80 | 100 |
| CD43-5.6uH/M | 5.6 | 0.090 | 1.70 | 100 |
| CD43-6.8uH/M | 6.8 | 0.10 | 1.50 | 100 |
| CD43-8.2uH/M | 8.2 | 0.13 | 1.30 | 100 |
| CD43-10uH/M | 10 | 0.14 | 1.20 | 100 |
| CD43-15uH/M | 15 | 0.23 | 1.00 | 100 |
| CD43-18uH/M | 18 | 0.25 | 0.90 | 100 |
| CD43-22uH/M | 22 | 0.26 | 0.80 | 100 |
| CD43-27uH/M | 27 | 0.33 | 0.75 | 100 |
| CD43-33uH/M | 33 | 0.42 | 0.70 | 100 |
| CD43-39uH/M | 39 | 0.50 | 0.65 | 100 |
| CD43-47uH/M | 47 | 0.58 | 0.55 | 100 |
| CD43-56uH/M | 56 | 0.70 | 0.50 | 100 |
| CD43-68uH/M | 68 | 0.85 | 0.48 | 100 |
| CD43-82uH/M | 82 | 1.00 | 0.45 | 100 |
| CD43-100uH/M | 100 | 1.30 | 0.30 | 100 |
| CD43-150uH/M | 150 | 1.70 | 0.25 | 1MHz |
| CD43-220uH/M | 220 | 2.70 | 0.16 | 1MHz |
| CD43-680uH/M | 680 | 9.70 | 0.15 | 1MHz |
| CD43-1.0mH/M | 1000 | 13.00 | 0.08 | 1MHz |
| ? | ? | ? | ? | ? |
| Remark:? ●? MTolerance: N:±30% , M:±20% , ? ?K:±10% | ? | ? | ||
| ?????????????? ●? Inductance Tested : ? ?1uH~100uH at 100kHz,0.25Vrms , 150uH~1000uH at 1MHz/0.25V (20℃) | ||||
| ?????????????? ●? IDC: DC current at ? ?which the inductance drops approximate 20% from its value without current | ||||
| ?????????????? ●? Operating? Temperature : -25℃ ~ +105℃ | ? | ? | ||
| ?????????????? ●? Measure Equipment: | ? | ? | ? | |
| ??????????????????? INDUCTANCE : Agilent ? ?HP-4284A , HP-4285A | ? | ? | ||
| ??????????????????? IDC : Agilent ? ?HP-4284A+HP-42841A | ? | ? | ? | |
| ??????????????????? DCR : CHEN HWA 502A | ? | ? | ? | |
